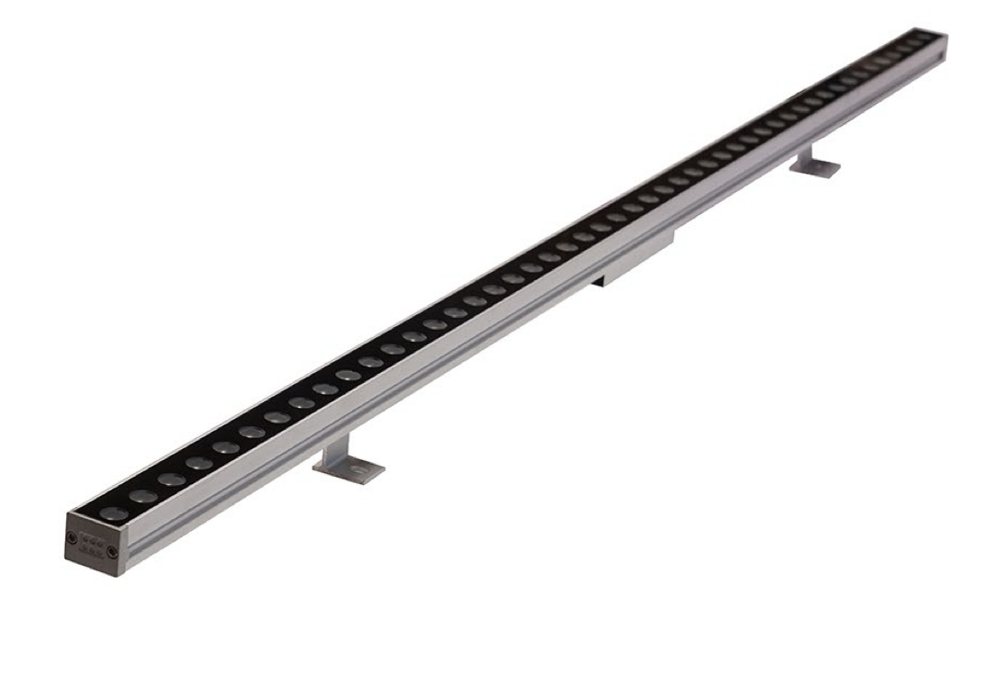

PL-LNR 36 is a linear wall washer with a clean, efficient profile for interior and exterior projects — hotels, villas, clubs, opera houses, museums, exhibition centres, stores, boutiques and homes. The extruded aluminium body has die-cast end caps with a silicone seal and a 4 mm clear tempered-glass optical screen.
Available in high-power 4-in-1 RGBW and static CCT 3000 K, controlled over DMX, with beam options of 10° and 30° plus elliptical 10°×60° and 30°×60°. Powered from 220–240 V AC, with a custom 24 V DC option. Two nickel-finished brass glands and a neoprene cable allow daisy-chain connection; the fitting surface-mounts on adjustable brackets. An optional anti-glare louvre is available.
Features
- Linear wall washer for interior and exterior architectural projects.
- High-power 4-in-1 RGBW and static CCT 3000 K, controlled via DMX.
- Beam options — 10° · 30° plus 10°×60° and 30°×60° elliptical.
- Extruded aluminium body with die-cast end caps, silicone seal and 4 mm tempered-glass screen.
- 220–240 V AC (custom 24 V DC option) · IP67 · optional anti-glare louvre.
- Daisy-chain brass glands with neoprene lead; surface mount on adjustable brackets; any RAL finish.
Specifications
| Series | Linear Wallwasher Series — RGBW / CCT |
|---|---|
| Product code | PL-LNR-36-*-* |
| LED type | High-power 4-in-1 RGBW |
| LED quantity | 24 pcs (per 1000 mm) |
| Operating voltage | 220–240 V AC (custom 24 V DC) |
| Power | 36 W (per 1000 mm) |
| Luminous output | 3420 lm at source · 2340 lm delivered |
| CRI | RA80+ (based on 3000 K) |
| Colour options | RGBW 3000 K · Static CCT 3000 K |
| Beam angle | 10° · 30° · 10°×60° · 30°×60° |
| Control protocol | DMX |
| IP rating | IP67 |
| IK rating | IK08 |
| Insulation class | Class III |
| Dimensions | L 1000 mm × W 40 mm × H 47 mm |
| Custom lengths | 1000 mm (standard) · 500 mm · 300 mm |
| Weight | 1.8 kg (per 1000 mm) |
| Housing / screen | Extruded aluminium · die-cast end caps · 4 mm tempered glass |
| Finish | Powder-coat grey (RAL 9006) · any RAL on request |
| Accessories | Anti-glare louvre (optional) |
| LED lifetime | 80% lumen maintenance after 50,000 hours |
| Installation | Surface mount on adjustable brackets · daisy-chain (0.3 m H05RN-F lead) |
