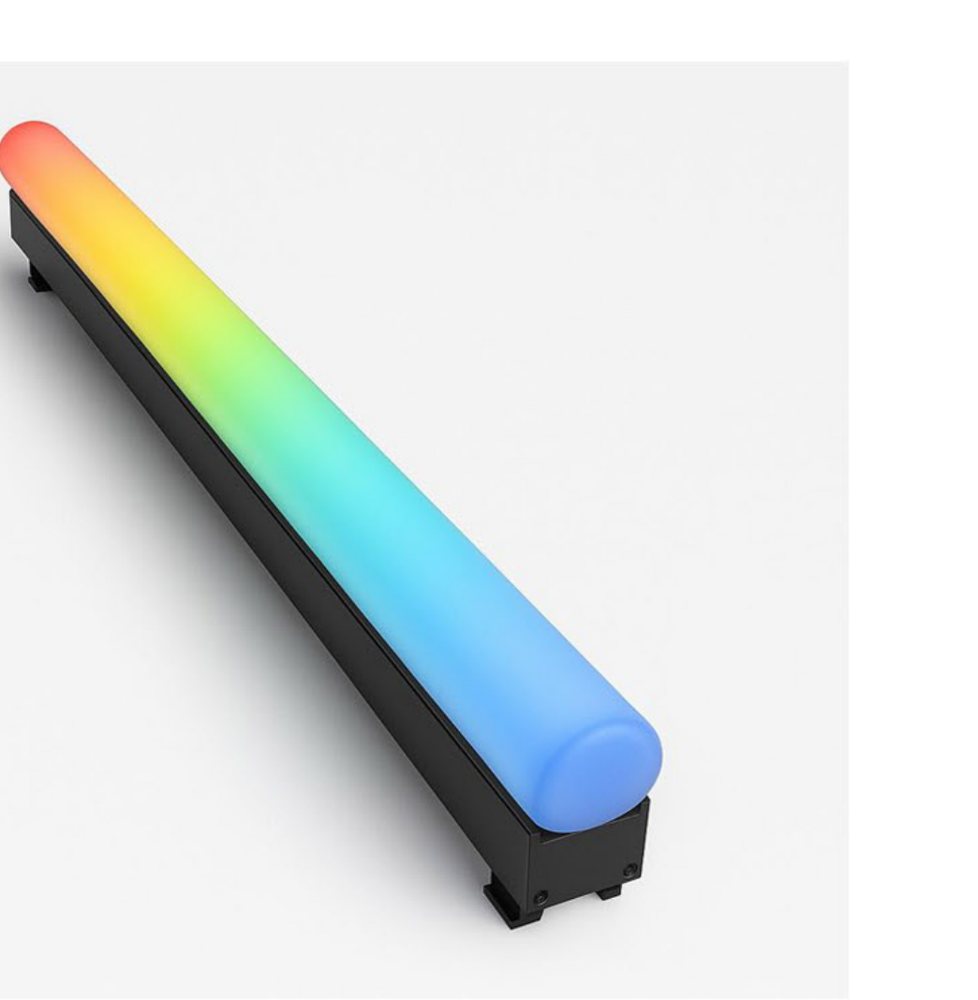

PL-LNR 10 is a direct-view IntelliBar — a pixel-addressable RGBW linear bar in a rugged extruded aluminium housing with an impact-resistant polycarbonate diffuser. With an IP67 rating it is fully sealed against dust and powerful water jets, suiting both indoor and outdoor architectural, commercial and entertainment lighting.
Integrated DMX support gives precise control over brightness, colour and dynamic effects, with 8 individually addressable pixels (32 channels) per bar. Choose a flat (120°), square (270°) or round (330°) diffuser to set the beam spread; custom lengths and any RAL body finish are available. Its slim 23 × 23 mm profile installs discreetly along walls, ceilings or structural elements.
Features
- 8 individually addressable RGBW pixels per bar — 32 DMX channels for smooth gradients and dynamic effects.
- Three diffuser options — flat (120°), square (270°) and round (330°) beam spread.
- Rugged extruded aluminium housing with impact-resistant polycarbonate diffuser; IK08 rated.
- IP67 — fully sealed against dust and powerful water jets for indoor or outdoor use.
- Slim 23 × 23 mm profile for discreet wall, ceiling or structural mounting.
- Custom lengths (500 / 300 mm) and any RAL body finish available on request.
Specifications
| Series | Direct View Series — IntelliBar Pixel RGBW |
|---|---|
| Product code | PL-LNR-10-*-* |
| LED type | SMD 5050 · 4-in-1 RGBW |
| LED quantity | 48 pcs (per 1000 mm) |
| Operating voltage | 24 V DC |
| Power | 12 W/m |
| Luminous output | 400 lm/m · 33 lm/W |
| Control protocol | DMX (addressable) |
| DMX channels | 32 channels — RGBW × 8 pixels |
| Pixels | 8 individually addressable pixels (per 1000 mm) |
| Beam angle | 120° (flat) · 270° (square) · 330° (round) |
| Diffuser | Polycarbonate — flat / square / round |
| IP rating | IP67 |
| IK rating | IK08 |
| Dimensions | L 1000 mm × W 23 mm × H 23 mm (incl. brackets) |
| Custom lengths | 1000 mm (standard) · 500 mm · 300 mm |
| Weight | 1.6 kg (per 1000 mm) |
| Housing | Extruded aluminium alloy |
| Finish | Black (standard) · any RAL on request |
| Operating temperature | –20 °C to +45 °C |
| LED lifetime | 80% lumen maintenance after 50,000 hours |
| Installation | Surface mount with brackets and screws |
