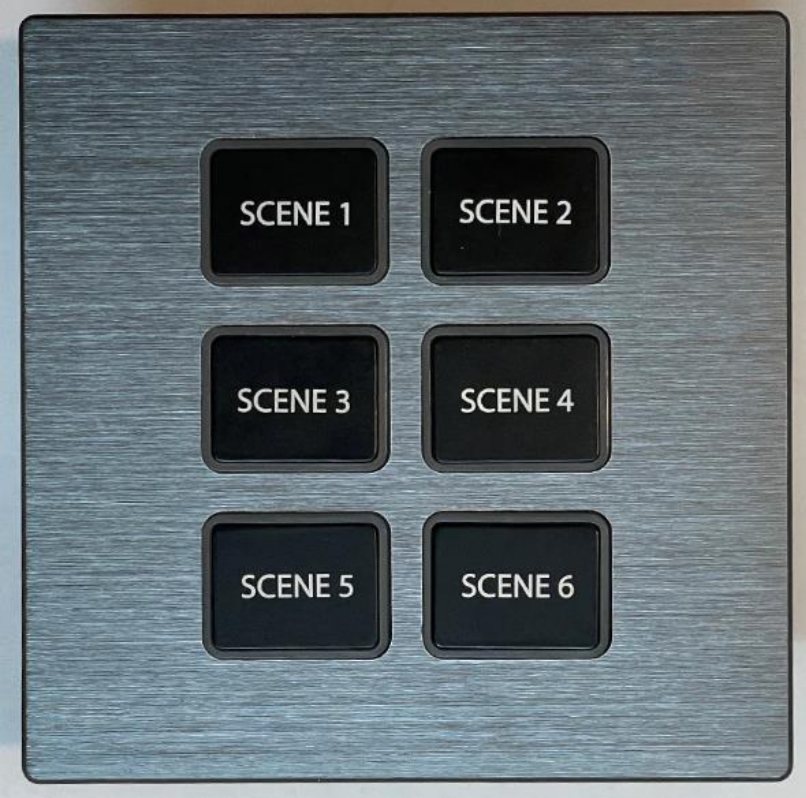

PL-TP 6 is an aluminium brushed, CNC-style modular button panel with 6 individual push buttons that trigger the dry-port contacts of external systems.
The text on the individual buttons can be customised as per project demands, and the brushed aluminium frame is available in five finishes — gray, rose gold, coffee gold, black and silver.
Fully passive dry-contact operation makes wiring simple: each scene button closes a GND + K contact pair on the rear connector block.
Features
- Aluminium brushed CNC-style modular panel — premium wall-mount finish.
- 6 individual push buttons triggering dry-port contacts of external systems.
- Button text customisable per project demands.
- Five frame colours: gray, rose gold, coffee gold, black and silver.
- Simple wiring — each scene closes a GND + K contact pair on the rear connector block.
- Passive operation using dry contact technology — no external power required.
Specifications
| Series | Control Panel — Push Button |
|---|---|
| Product code | PL-TP 6 |
| Type | 6 push button panel |
| Mode of operation | Dry contact technology |
| Buttons | 6 individual push buttons |
| Button text | Customisable as per project demands |
| Frame | Aluminium brushed, CNC style, modular |
| Frame colours | Gray · rose gold · coffee gold · black · silver |
| Function | Triggers the dry-port contacts of external systems |
| Connector block | Rear screw terminals — GND, K1–K6 (D1–D6 marked) |
| Scene mapping | S1: GND+K3 · S2: GND+K4 · S3: GND+K2 · S4: GND+K5 · S5: GND+K1 · S6: GND+K6 |
| Power | Passive — no external power supply required |
| Compatibility | Any system with dry-contact trigger inputs |
| Dimensions | 86 mm × 86 mm |
| Mounting | Wall mount — modular |
| Installation | Indoor installations |
| Operating temperature | –10 °C to +50 °C |
| IP rating | IP40 — interior application |
| Certification | CE |
| Environment | Interior application |
| Applications | Scene selection for lighting control systems |
| Warranty | 5 years |
