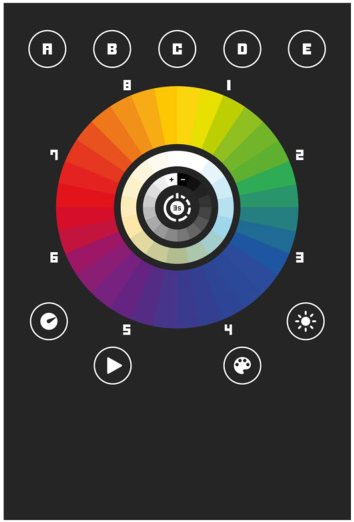

PL-TOUCH is a DMX lighting control interface with a sleek design and a visually intuitive, multifunction touch-sensitive surface for all your indoor installations. Available in two versions: 512 or 1024 channels (2 × 512).
Control up to two universes across five zones with the PL-TOUCH 1024, or one split universe with five pages of scene memory with the PL-TOUCH 512. Both models offer instant playback of up to forty custom programmed scenes.
Free software and application download across devices — Windows, macOS, Linux, Raspberry Pi, Android and iOS.
Features
- Visually intuitive multifunction touch-sensitive glass surface — colour wheel, CCT, dimmer, scene and speed modes with tactile wheel.
- Instant playback of up to 40 custom programmed scenes — up to 8 scenes per zone or page.
- Stand-alone operation with adjustable time clock — real-time clock and calendar triggers per scene (hour, day, week, month, year).
- 4 dry contacts on 3–5 V (On, On/Off, Release, Restart, Scene priority — up to 16 contacts).
- Master/Slave mode with up to 32 devices combined and synchronised (64 universes).
- Micro SD card (FAT, up to 256 GB) plus 4 Mb internal memory — no SD card required.
Specifications
| Series | DMX Controller — Touch Interface |
|---|---|
| Models | PL-TOUCH 512 · PL-TOUCH 1024 |
| DMX output | 512 ch (split ×2, 1 U.) In/Out · 1024 ch (2 × 512) In/Out |
| Zones (stand-alone) | PL-TOUCH 512: 1 (5 pages) · PL-TOUCH 1024: 5 |
| Scenes | Up to 40 custom programmed — instant playback, 8 per zone/page |
| Memory | Micro SD card (FAT, up to 256 GB) + 4 Mb internal (no SD required) |
| Memory capacity | 5K–20K memory steps |
| DMX modes | DMX In/Out · DMX Merge · DMX Trigger |
| Stand-alone options | Adjustable time clock · play scene, colour, speed, dimmer, zones/pages |
| Master / Slave | Up to 32 devices combined and synchronised (64 universes) |
| Triggers (stand-alone) | Real-time clock & calendar per scene (hour, day, week, month, year) |
| Dry contacts | 4 × on 3–5 V — On, On/Off, Release, Restart, Scene priority (16 max) |
| Terminal block | 7-pin — DMX1, DMX2, DC power |
| Max DMX outputs (USB) | ×12 USB interfaces connected |
| Power | Input 9–24 V DC, 0.1 A · Output 5 V DC |
| I/O connectors | USB-C (5 V DC, 0.1 A) · RJ45 (contacts, Master/Slave) |
| Dimensions | H 144 mm × W 97 mm × D 10 mm (5.67″ × 3.82″ × 0.39″) |
| Housing | Black or white ABS plastic, glass panel |
| Operating temperature | –40 °C to +85 °C |
| IP rating | IP40 — interior application |
| Certifications | CE · LVD · RoHS |
| Warranty | 5 years (international) |
