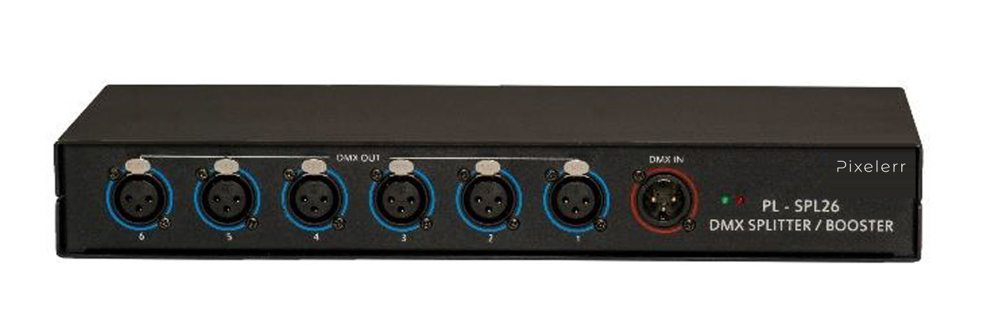

PL-SPL 26 is a 6-output DMX splitter and signal booster designed to enhance and expand your DMX control system. It takes an incoming DMX signal and distributes it across six independent output channels, effectively multiplying the number of devices controlled from a single DMX line while maintaining full signal strength.
Optically isolated inputs and outputs with an independent coil transformer on each output ensure electrical isolation, signal boosting and stability — refined, filtered data transmission for reliable and precise signal delivery.
Designed in Europe and assembled in the UAE — high-quality engineering with precision manufacturing for reliable performance.
Features
- 6-way DMX splitter / booster — expands DMX connectivity while maintaining signal strength.
- Optically isolated DMX inputs and outputs — electrical isolation for improved safety and performance.
- Independent coil transformer for each output — signal boosting and stability.
- Refined and filtered data transmission — reliable and precise signal delivery.
- Versatile mounting: surface, rack, floor or ceiling installation with included accessories.
- An excellent solution for professional DMX systems requiring robust performance and flexibility.
Specifications
| Series | DMX Splitter / Booster |
|---|---|
| Product code | PL-SPL 26 |
| Function | 6-output DMX splitter and signal booster |
| Data input | 1 × 3-pin XLR connector |
| Data output | 6 × 3-pin XLR connectors — independent output channels |
| Isolation | Optically isolated DMX inputs and outputs |
| Signal boosting | Independent coil transformer for each output |
| Transmission | Refined and filtered — reliable and precise signal delivery |
| Protocol | DMX512 |
| Input voltage | 230 V AC via pre-connected 3-core 0.75 mm² cable |
| Power consumption | 4.5 W max |
| Mounting | Surface, rack, floor or ceiling — accessories included |
| Dimensions | L 343 mm × H 123 mm × D 46 mm |
| Weight | 1.5 kg (3.3 lb) |
| Housing | MS / Aluminium |
| Connector / cable | 3-core 0.75 mm² cable |
| Operating temperature | –10 °C to +50 °C |
| Storage temperature | –20 °C to +70 °C |
| Environment | IP20 — interior application |
| Certification | CE |
| Applications | Professional DMX systems · stage · architectural lighting |
| Origin / warranty | Designed in Europe, assembled in the UAE · 5 years |
