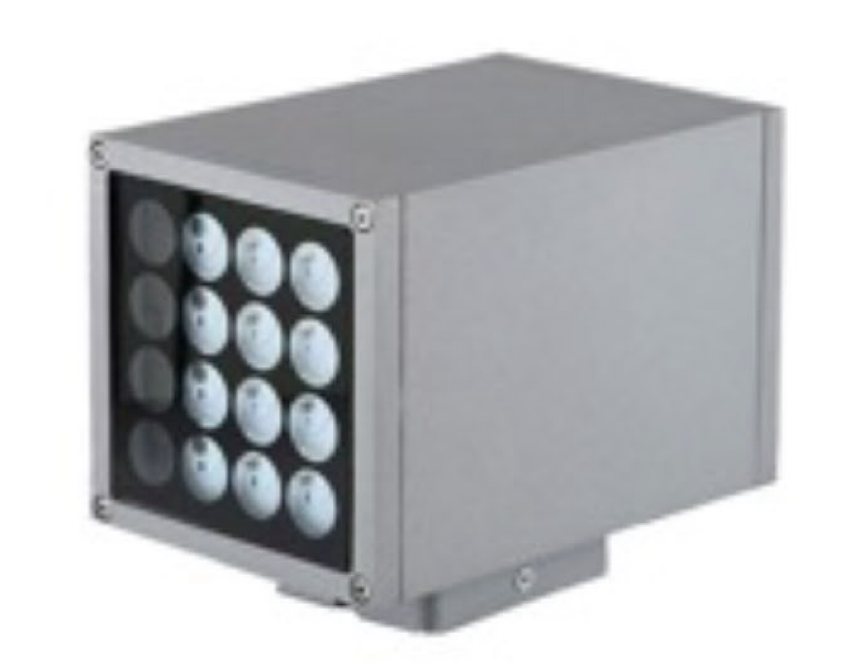

The PL-SFX UD is a sleek, durable up/down architectural light designed for both aesthetics and performance. Available in 9 W and 18 W options, it features an IP67-rated die-cast aluminium housing for excellent weather resistance, with RGBW and multiple CCT options for versatile outdoor and façade lighting.
Designed for modern architectural accents, its high-grade finish resists corrosion in harsh environments. It integrates with smart controls and is DMX-compatible (optional), and is backed by a 5-year warranty — perfect for hotels, villas, commercial buildings and landscape projects.
Features
- Up or up/down architectural light — RGBW, RGBWA and multiple CCT options.
- 9 W and 18 W per head (single up, or up-down configurations).
- Beam angles from 5° to 90° for accent or wash.
- IP67 · IK06 die-cast aluminium housing; –20 °C to +45 °C.
- DMX-compatible (optional) with smart-control integration.
- Corrosion-resistant high-grade finish; 5-year warranty.
Specifications
| Series | SFX Architectural — LED Up / Down Light |
|---|---|
| Model | PL-SFX UD |
| Product code | PL-SFX-UD-*-*-* |
| Configuration | Up light · Up/Down light |
| Power per head | 9 W · 18 W |
| Colour modes | RGBW · RGBWA · Static CCT |
| CCT options | 2700 K · 3000 K · 3500 K · 4000 K · 5700 K |
| RGBW options | RGBW 3000 K · 4000 K · RGBWA |
| Operating voltage | 24 V DC |
| Beam angle | 5° · 10° · 15° · 20° · 25° · 45° · 60° · 90° |
| Control protocol | DMX (optional) |
| Dimming | 0–100% (DMX optional) |
| IP rating | IP67 |
| IK rating | IK06 |
| Operating temperature | –20 °C to +45 °C |
| Housing | Die-cast aluminium |
| Finish | High-grade corrosion-resistant |
| Installation | Surface / wall mount (up or up-down) |
| Application | Façade · hotels · villas · landscape |
| Compliance | CE |
| Warranty | 5 years, limited |
| Dimensions | See dimensions drawing |
