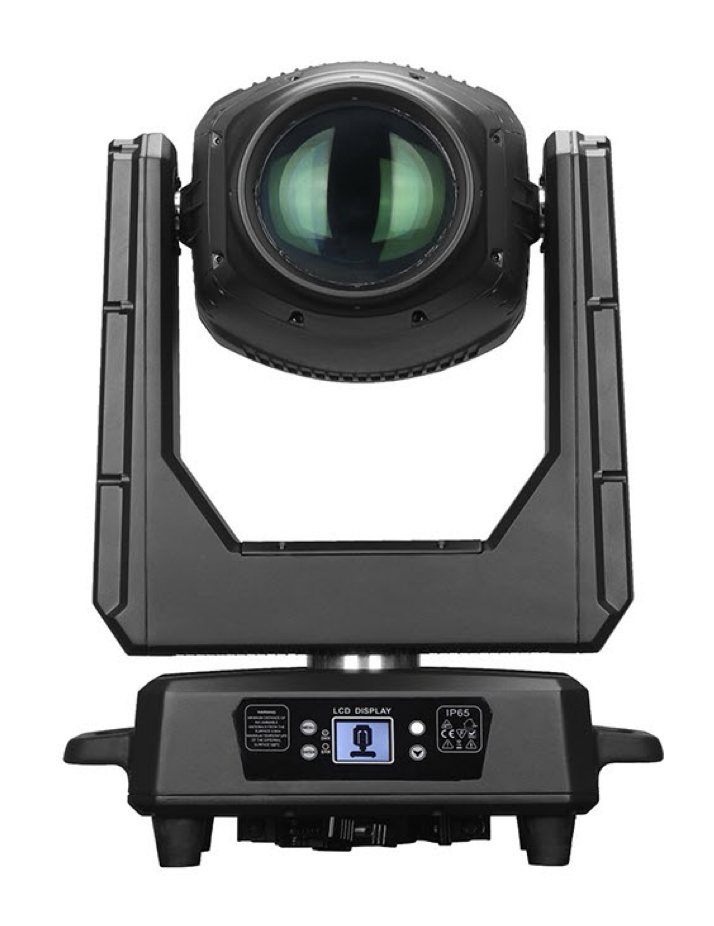

The PL-SFX MH700 is a 700 W LED moving head delivering bright, long-lasting illumination with an adjustable beam from a tight spotlight to a wide wash. Smooth pan/tilt movement, vibrant colours and customizable effects — multiple patterns, prisms and strobe — create dynamic visuals.
Control via DMX 512 / RDM, automatic programs or sound activation, with a touch display for settings including fan speed and usage time. Built for tough conditions with a weather-resistant IP66 design, waterproof connectors, automatic cooling and overheat protection. A user-friendly build makes it ideal for concerts, stage productions, outdoor events and architectural lighting.
Features
- 700 W LED moving head — 14,174 lux @ 15 m, 138 mm aperture; ≥ 20,000-hour life.
- Colour system: 7 colours + CMY + CTO (3200–6500 K); static (6) and rotating (7) gobo wheels.
- Dual prism (8-facet + 6-facet), 4-blade graphic cutting system, 4°–36° zoom and electronic focus.
- 540° pan / 270° tilt with built-in position and LED calibration; 0–20 Hz strobe.
- DMX 512 / RDM, automatic programs and sound activation; 38 / 41 channels.
- IP66 magnesium-alloy body, waterproof connectors, auto cooling and overheat protection; touch display.
Specifications
| Series | Projector Series — LED Moving Head |
|---|---|
| Model | PL-SFX MH700 |
| Light source | 700 W LED |
| Illumination | 14,174 lux @ 15 m |
| Light output aperture | 138 mm |
| Colour temperature | 6500 K |
| Zoom range | 4° to 36° |
| Colour system | 7 colours + CMY + CTO (3200–6500 K) |
| Static gobo wheel | 1 — 6 interchangeable gobos |
| Rotating gobo wheel | 1 — 7 interchangeable gobos |
| Prism | 2 — 8-facet + 6-facet |
| Framing | 4-piece graphic cutting system |
| Gobo size | Ø 22.5 mm (overall) · Ø 12 mm (image) |
| Focus | Electronic |
| Pan / tilt | 540° / 270° (position + LED calibration) |
| Control mode | DMX 512 / RDM · auto · sound |
| DMX channels | 38 / 41 |
| Protection class | IP66 |
| Power consumption | 850 W |
| Light source life | ≥ 20,000 hours |
| Net weight | 28 kg |
| Dimensions | 415 × 240 × 766 mm |
Contact Us
Interested in the PL-SFX MH700? Send us your project details and we’ll get back to you.
