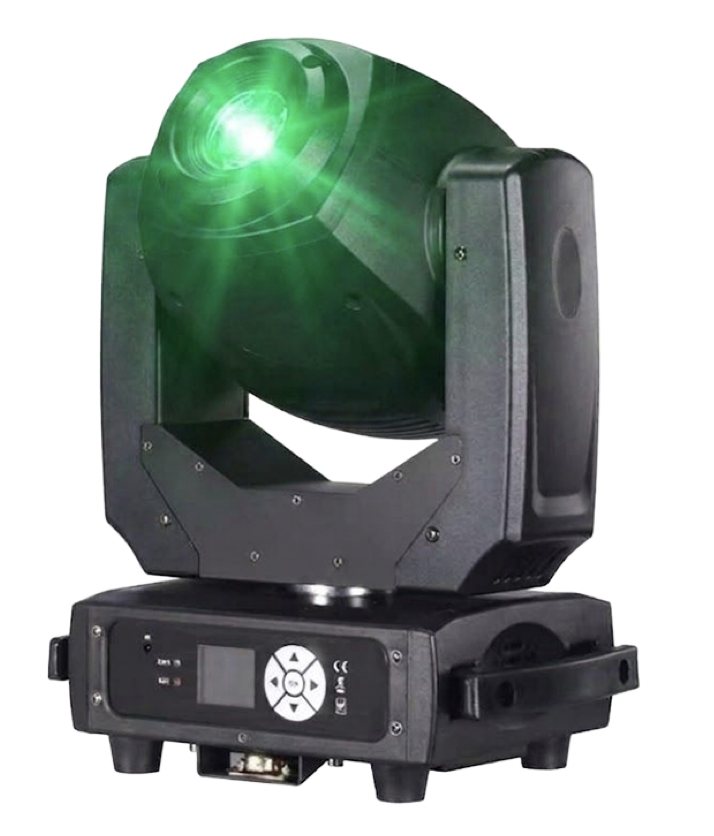

The PL-SFX MH150 is a 150 W LED moving head delivering bright, long-lasting illumination with an adjustable beam from a tight spotlight to a wide wash. Smooth pan/tilt movement, vibrant colours and customizable effects — multiple patterns, prisms and strobe — create dynamic visuals.
Control via DMX 512 / RDM, automatic programs or sound activation, with a touch display for settings including fan speed and usage time. An indoor-rated (IP20) build with automatic cooling and overheat protection. A user-friendly build makes it ideal for concerts, stage productions, outdoor events and architectural lighting.
Features
- 150 W LED spot moving head with a fixed 16° beam; ≥ 20,000-hour life.
- 7-colour wheel with 3200–8000 K CTO; static and rotating gobo wheels (7 gobos + open each).
- 3-facet prism, mechanical focus and 0–20 Hz strobe.
- 540° pan / 270° tilt with built-in position and LED calibration.
- DMX 512 / RDM, automatic programs and sound activation; 16 channels.
- Touch display (usage time, fan speed, modes); automatic cooling and overheat protection.
Specifications
| Series | Projector Series — LED Moving Head |
|---|---|
| Model | PL-SFX MH150 |
| Light source | 150 W LED (spot) |
| Beam angle | 16° |
| Dimming | 0–100% linear |
| Colour wheel | 1 — 7 colours |
| CTO | 3200–8000 K adjustable |
| Static gobo wheel | 7 gobos + open |
| Rotating gobo wheel | 7 gobos + open |
| Prism | 1 — 3-facet |
| Gobo type | Colour · monochrome · two-colour |
| Focus | Mechanical |
| Strobe | 0–20 Hz |
| Pan / tilt | 540° / 270° (position + LED calibration) |
| Control mode | DMX 512 / RDM · auto · sound |
| DMX channels | 16 |
| Protection class | IP20 |
| Input voltage | AC 90–240 V · 50/60 Hz |
| Power consumption | 170 W |
| Light source life | ≥ 20,000 hours |
| Net weight | 9.5 kg |
| Dimensions | 480 × 370 × 280 mm |
Contact Us
Interested in the PL-SFX MH150? Send us your project details and we’ll get back to you.
