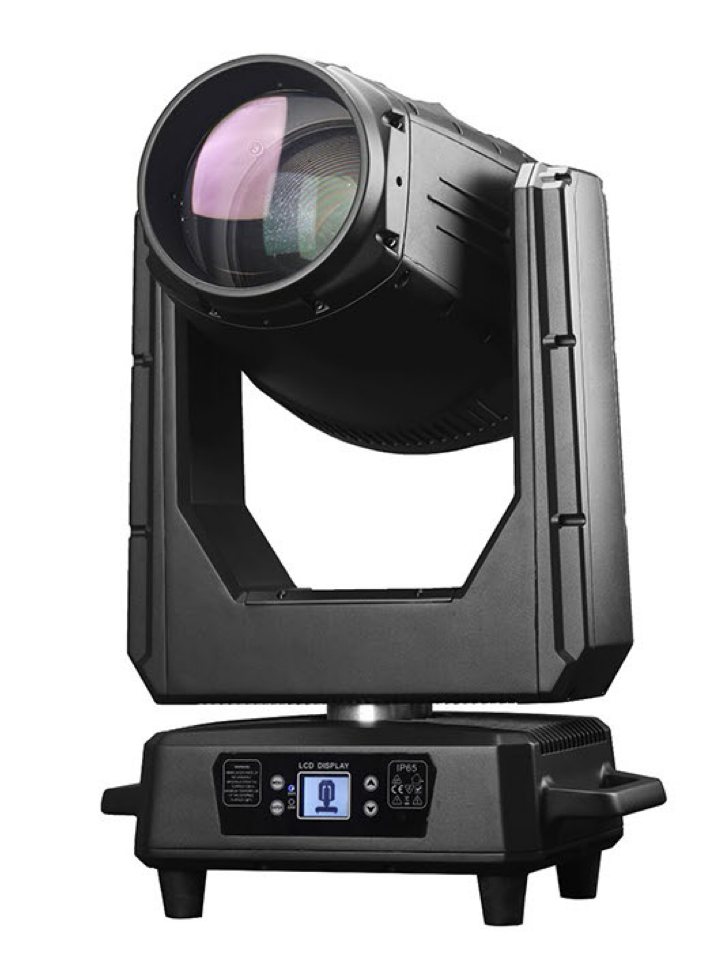

The PL-SFX LMH300 is a 300 W laser moving head delivering bright, long-lasting illumination with an adjustable beam from a tight spotlight to a wide wash. Smooth pan/tilt movement, vibrant colours and customizable effects — multiple patterns, prisms and strobe — create dynamic visuals.
Control via DMX 512 / RDM, automatic programs or sound activation, with a touch display for settings including fan speed and usage time. Built for tough conditions with a weather-resistant IP66 design, waterproof connectors, automatic cooling and overheat protection — ideal for concerts, stage productions, outdoor events and architectural lighting.
Features
- 300 W laser source with a 160 mm output aperture; ≥ 12,000-hour life.
- Colour wheel (13 colours + white) and 17-gobo static wheel; dual prism (8-facet + honeycomb).
- Continuous zoom and electronic focus — tight spotlight to wide wash.
- 540° pan / 270° tilt with built-in position calibration; 0–20 Hz strobe.
- DMX 512 / RDM, automatic programs and sound activation; 12 / 15 channels.
- IP66 magnesium-alloy body, waterproof connectors, auto cooling and overheat protection; touch display.
Specifications
| Series | Projector Series — Laser Moving Head |
|---|---|
| Model | PL-SFX LMH300 |
| Light source | 300 W laser |
| Light output aperture | 160 mm |
| Colour temperature | 7500 K |
| Zoom range | Continuous (from 1° beam) |
| Dimming | 0–100% linear |
| Colour wheel | 1 — 13 colours + white |
| Gobo wheel | 1 static — 17 interchangeable gobos |
| Prism | 2 — 8-facet + honeycomb |
| Focus | Electronic |
| Strobe | 0–20 Hz |
| Pan / tilt | 540° / 270° (position calibration) |
| Control mode | DMX 512 / RDM · auto · sound |
| DMX channels | 12 / 15 |
| Protection class | IP66 |
| Input voltage | AC 90–240 V · 50/60 Hz |
| Power consumption | 400 W |
| Material | Magnesium alloy |
| Light source life | ≥ 12,000 hours |
| Net weight | 22 kg |
| Dimensions | 415 × 240 × 706 mm |
Contact Us
Interested in the PL-SFX LMH300? Send us your project details and we’ll get back to you.
