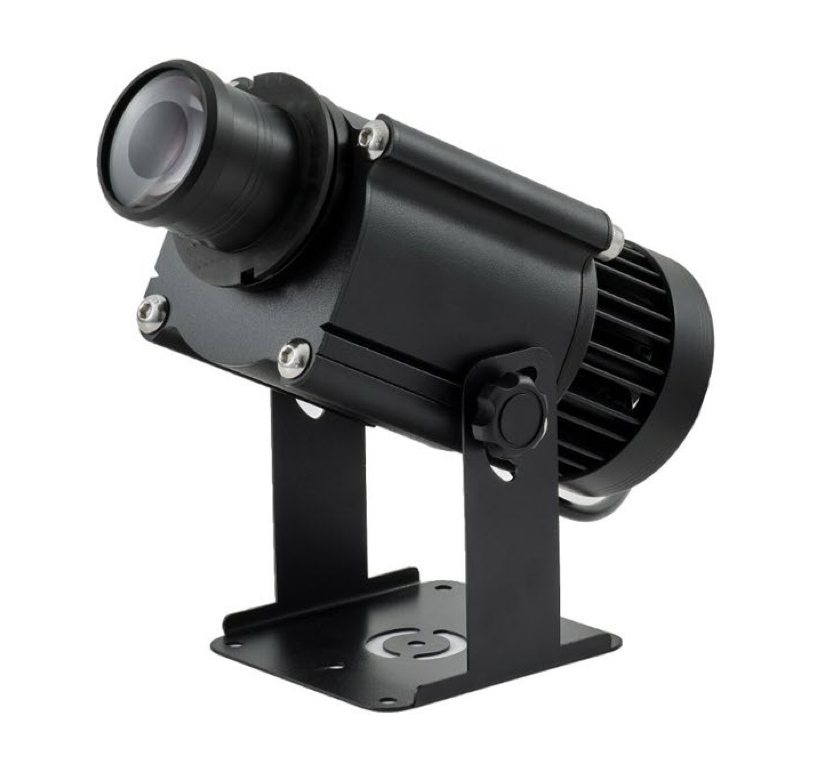

The PL-SFX IP50 is a durable, high-performance gobo image projector crafted from premium aluminium alloy. It projects sharp, customizable logos in colour, monochrome or two-colour up to 7 metres — ideal for branding and decorative use.
A 50 W OSRAM source delivers 4200 lm with a 50,000-hour life, cooled by an aluminium body and fan. The IP65 rating suits indoor and outdoor events, promotions and displays. At just 1.8 kg it is easy to transport, with a manual-focus lens and switch control for precise adjustment, plus DMX dimming.
Features
- Premium aluminium-alloy gobo image projector — sharp, customizable logos.
- Projects colour, monochrome or two-colour gobos up to 7 m.
- 50 W OSRAM light source — 4200 lm, 50,000-hour life.
- Beam-angle options 15° / 25° / 30°; manual-focus lens.
- IP65 weather-resistant — indoor or outdoor events, promotions and displays.
- Lightweight 1.8 kg and portable; DMX dimming control.
Specifications
| Series | Projector Series — Image Projector |
|---|---|
| Model | PL-SFX IP50 |
| Light source | 50 W · OSRAM |
| Luminous flux | 4200 lm |
| Colour temperature | 8000 K |
| Projection distance | Up to 7 m (ambient darkness) |
| Beam angle | 15° · 25° · 30° (custom available) |
| Number of gobos | 1 |
| Gobo type | Colour · monochrome · two-colour |
| Gobo size | Ø 37 mm (overall) · Ø 25 mm (image) |
| Focus | Manual |
| Control mode | DMX 512 (1 channel — dimming) |
| Protection class | IP65 |
| Material | High-quality aluminium alloy |
| Body colour | Black |
| Power supply | Customised power supply |
| Heat dissipation | Aluminium + fan cooling |
| Light source life | 50,000 hours |
| Input voltage | 220 V AC |
| Net weight | 1.8 kg |
| Dimensions | 240 × 165 × 135 mm |
| Package size | 270 × 150 × 180 mm |
