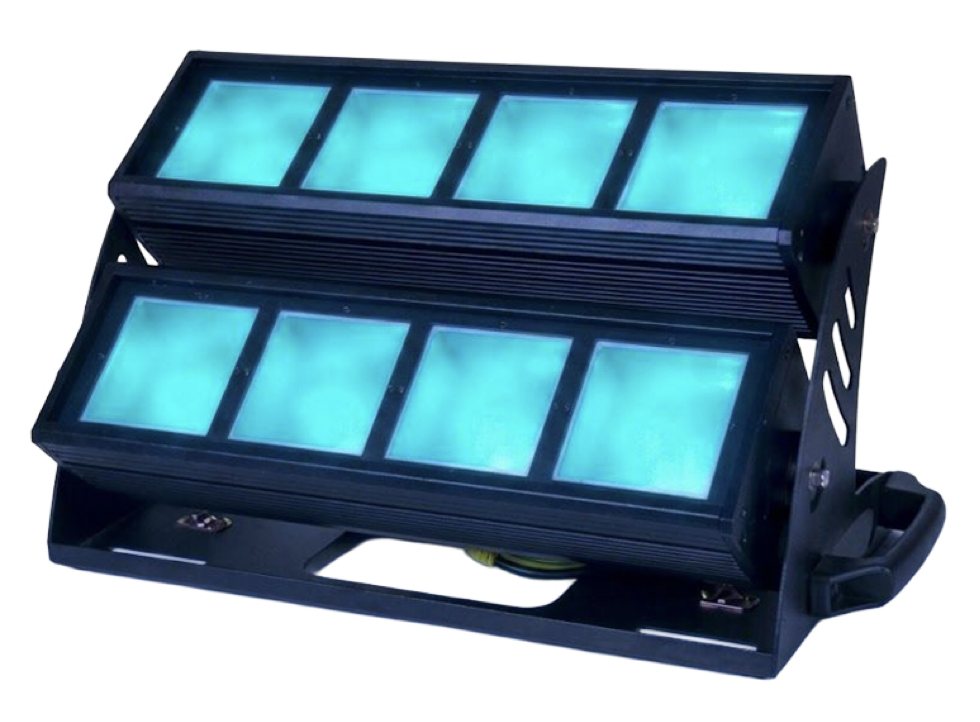

The PL-SFX CM400 is a 400 W LED cyclorama light with a plate-material shell — high efficiency, energy saving and durable, for indoor stage use. Designed and produced to CE standards with full DMX512 compatibility, it works standalone or linked, and suits large theatres, studios, discos and art-performance venues.
Specially designed for stage curtains, wall wash and cyclorama effects, with a RGBBCAL 7-colour system (2700–8000 K) and HSIC colour mixing for a CRI above 97. Built-in position and LED calibration, 1–25/sec strobe and a touch display make setup and operation simple for touring and installation.
Features
- 400 W LED cyclorama / stage light — RGBBCAL 7-colour system, CRI > 97.
- Colour temperature 2700–8000 K with HSIC colour mixing.
- Interchangeable 30° / 80° heads; optimal projection distance 8–50 m.
- DMX 512 / RDM with multiple channel modes (7 / 9 / 11 / 15 / 17 / 22).
- 0–100% linear dimming and 1–25/sec strobe; built-in position & LED calibration.
- Aluminium-alloy body with touch display (usage time, fan speed, modes).
Specifications
| Series | Stage Light Series — LED Cyclorama |
|---|---|
| Model | PL-SFX CM400 |
| Light source | 400 W LED |
| CRI | > 97 Ra |
| Colour LEDs | RGBBCAL — 7-colour |
| Colour temperature | 2700–8000 K |
| Colour mixing | HSIC |
| Optimal projection distance | 8–50 m |
| Beam angle | 30° / 80° (interchangeable heads) |
| Dimming | 0–100% linear |
| Strobe | 1–25 / sec |
| Control mode | DMX 512 / RDM |
| DMX channels | 7 / 9 / 11 / 15 / 17 / 22 |
| Protection class | IP20 |
| Input voltage | AC 100–240 V · 50/60 Hz |
| Power consumption | 400 W |
| Material | Aluminium alloy |
| Light source life | ≥ 20,000 hours |
| Net weight | 17 kg |
| Dimensions | 617 × 310 × 328 mm |
| Calibration | Built-in position & LED |
| Display | Usage time · fan speed · modes |
Contact Us
Interested in the PL-SFX CM400? Send us your project details and we’ll get back to you.
