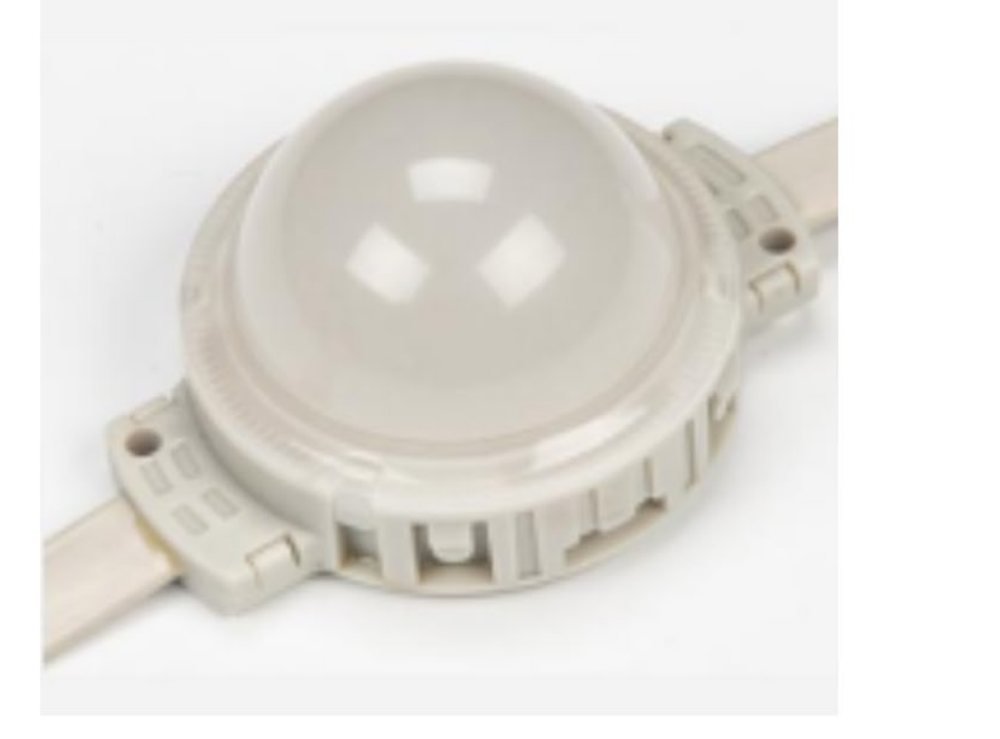

PL-PIX 30 is a direct-view pixel luminaire for creative urban concepts — media façades, low-density video displays and environmental graphics. The pixel dots can be arranged in any formation, enabling flexible, close integration with architecture.
Each pixel is individually addressable over DMX in RGBW, RGB or static CCT, at 1 or 1.5 W per pixel from 24 V DC. The fully-potted polycarbonate housing (UL94-V0) is IP67 and ESD-protected for outdoor use, with clip on/off, connectorless anti-pull joints for fast daisy-chain assembly. Choose dome type and pixel pitch to suit the display resolution.
Features
- Direct-view, individually addressable RGBW / RGB / CCT pixels over DMX.
- Arrange in any formation for media façades and low-density video displays.
- Clip on/off, connectorless anti-pull joints for fast daisy-chain assembly.
- Fully potted with imported glue; outdoor-rated with ESD protection.
- Polycarbonate housing, UL94-V0 flame retardance; IP67 · IK08.
- Four dome types and four pixel pitches (10–30 cm); white or black body, any custom.
Specifications
| Series | Pixel Series — direct-view pixel luminaire |
|---|---|
| Product code | PL-PIX-30-*-*-*-*-* |
| Pixel dot diameter | ≈ 30 mm (see dimensions) |
| Colour modes | RGBW · RGB · Static CCT |
| RGBW options | RGBW 3000 K · 4000 K · 6500 K |
| RGB option | RGB (3-in-1) |
| CCT options | 2700 K · 3000 K · 3500 K · 4000 K · 5000 K · 6000 K |
| Power per pixel | 1 W · 1.5 W |
| Operating voltage | 24 V DC |
| Control protocol | DMX (per-pixel addressable) |
| Beam angle | 120° |
| Pixel pitch | 10 cm · 15 cm · 20 cm · 30 cm |
| Dome / lens | Flat clear · Flat diffused · Dome clear · Dome crystal |
| Body finish | White · Black · custom |
| Housing | Polycarbonate |
| Flame retardance | UL94-V0 |
| IP rating | IP67 |
| IK rating | IK08 |
| Operating temperature | –30 °C to +50 °C |
| Connection | Clip on/off · anti-pull connectorless · daisy-chain |
| Protection | Outdoor-rated · ESD protection · fully potted (imported glue) |
| Warranty | 5 years, limited · CE compliant |
