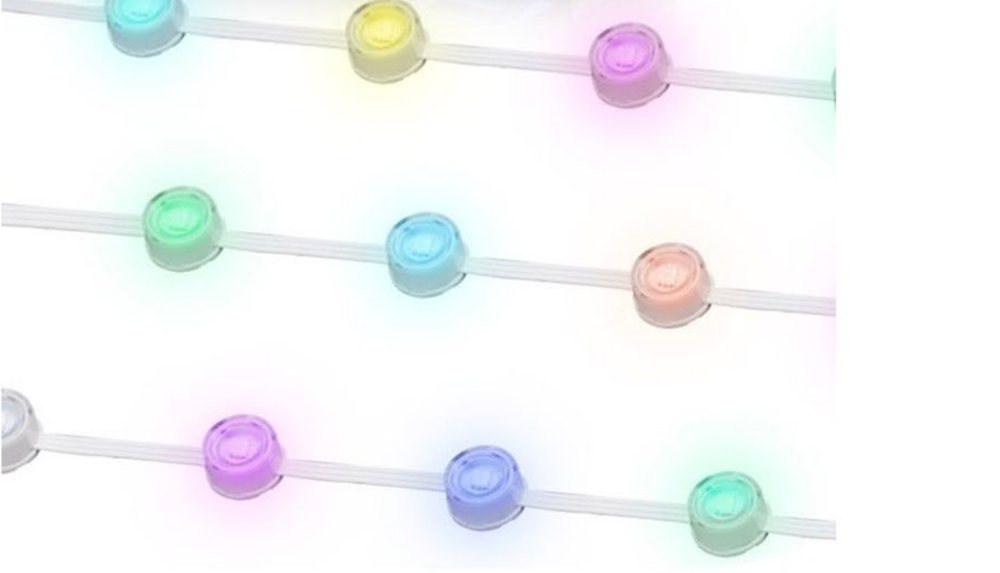

PL-PIX 20 is a direct-view pixel luminaire for creative urban concepts — media façades, low-density video displays and environmental graphics. The pixels can be arranged in any formation, enabling flexible, close integration with architecture.
Each compact 20 × 15 mm pixel is individually addressable over DMX in RGB, at 0.2 or 0.5 W per pixel from 24 V DC. The fully-potted polycarbonate housing is IP67 and ESD-protected for outdoor use, with clip on/off, connectorless anti-pull joints for fast daisy-chain assembly. Choose dome type and pixel pitch to suit the display resolution.
Features
- Direct-view, individually addressable RGB pixels over DMX.
- Compact 20 × 15 mm dot — arrange in any formation for media façades.
- Clip on/off, connectorless anti-pull joints for fast daisy-chain assembly.
- Fully potted with imported glue; outdoor-rated with ESD protection.
- Polycarbonate housing; IP67 · IK08.
- Four dome types and four pixel pitches (5–30 cm); white or black body.
Specifications
| Series | Pixel Series — direct-view pixel luminaire |
|---|---|
| Product code | PL-PIX-20-*-*-*-*-* |
| Pixel size | 20 mm × 15 mm |
| Colour | RGB |
| LED type | SMD 5050 |
| LEDs per pixel | 1 |
| Power per pixel | 0.2 W · 0.5 W |
| Operating voltage | 24 V DC |
| Control protocol | DMX (per-pixel addressable) |
| Beam angle | 120° |
| Luminous flux (0.5 W) | R 8 lm · G 15 lm · B 4 lm |
| Max run length | 5 m |
| Pixel pitch | 5 cm · 10 cm · 20 cm · 30 cm |
| Dome / lens | Flat clear · Flat diffused · Dome clear · Dome diffused |
| Body finish | White · Black · custom |
| Housing | Polycarbonate |
| IP rating | IP67 |
| IK rating | IK08 |
| Operating temperature | –30 °C to +50 °C |
| LED lifetime | 50,000 hours |
| Connection | Clip on/off · anti-pull connectorless · daisy-chain |
| Warranty | 5 years, limited · CE compliant |
