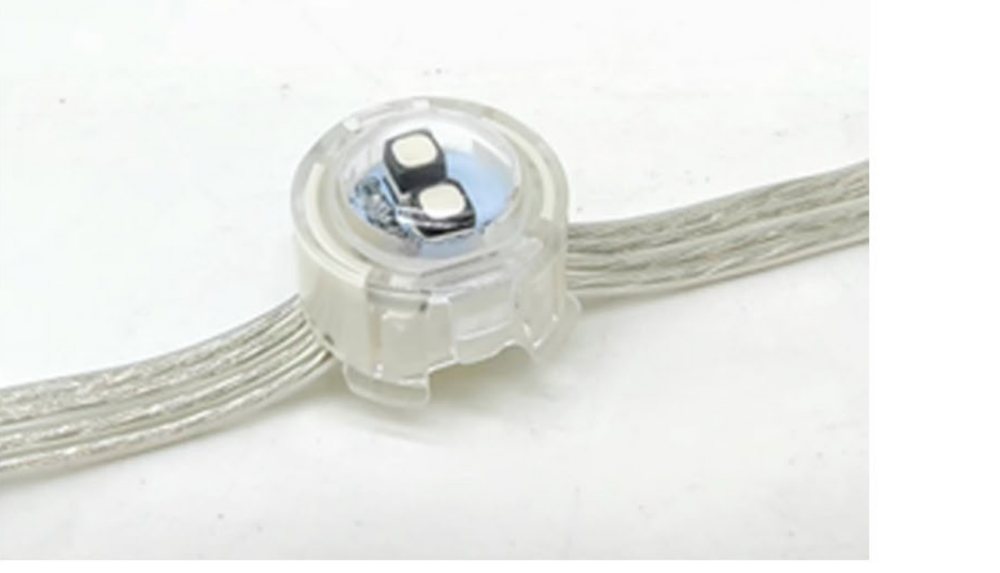

PL-PIX 15 is a direct-view pixel luminaire for creative urban concepts — media façades, low-density video displays and environmental graphics. The pixels can be arranged in any formation, enabling flexible, close integration with architecture.
Supplied as a pixel string (100 mm pitch) or as a ready-made pixel mesh (1 m × 1 m or 2.3 m × 2 m), each RGBW dot is individually addressable over DMX via a UCS512CBL driver IC at 1 W per pixel from 12 V DC. The fully-potted polycarbonate housing (grey RAL 9006) is IP67 for outdoor use, with multiple diffuser options and selectable grid pitch to set the display resolution.
Features
- Direct-view, individually addressable RGBW pixels over DMX (UCS512CBL IC).
- Use as a pixel string or as a ready-made pixel grid / mesh — same product.
- Fully potted with imported glue; IP67 for outdoor use.
- Polycarbonate housing, powder-coat grey RAL 9006.
- Multiple diffuser options for different output requirements.
- Selectable pitch distance to adjust grid resolution.
Specifications
| Series | Pixel Series — pixel mesh / string |
|---|---|
| Product code | PL-PIX-15-* |
| Formats | Pixel string (100 mm pitch) · Pixel mesh 1 m × 1 m · 2.3 m × 2 m |
| Colour | RGBW (3000 K · CRI 80) |
| Driver IC | UCS512CBL (DMX) |
| LEDs per pixel | 2 |
| Power per pixel | 1 W |
| Operating voltage | 12 V DC |
| Control protocol | DMX (per-pixel addressable) |
| Beam angle | 110° |
| Pixel pitch | 100 mm (string) · selectable in mesh |
| Diffuser | Multiple diffuser options |
| Housing | Polycarbonate |
| Finish | Powder-coat grey (RAL 9006) |
| IP rating | IP67 |
| IK rating | IK06 |
| Operating temperature | –30 °C to +60 °C |
| LED lifetime | 50,000 hours |
| Connection | Anti-pull connectorless · daisy-chain |
| Protection | Fully potted (imported glue) · outdoor-rated |
| Compliance | CE |
| Warranty | 5 years, limited |
