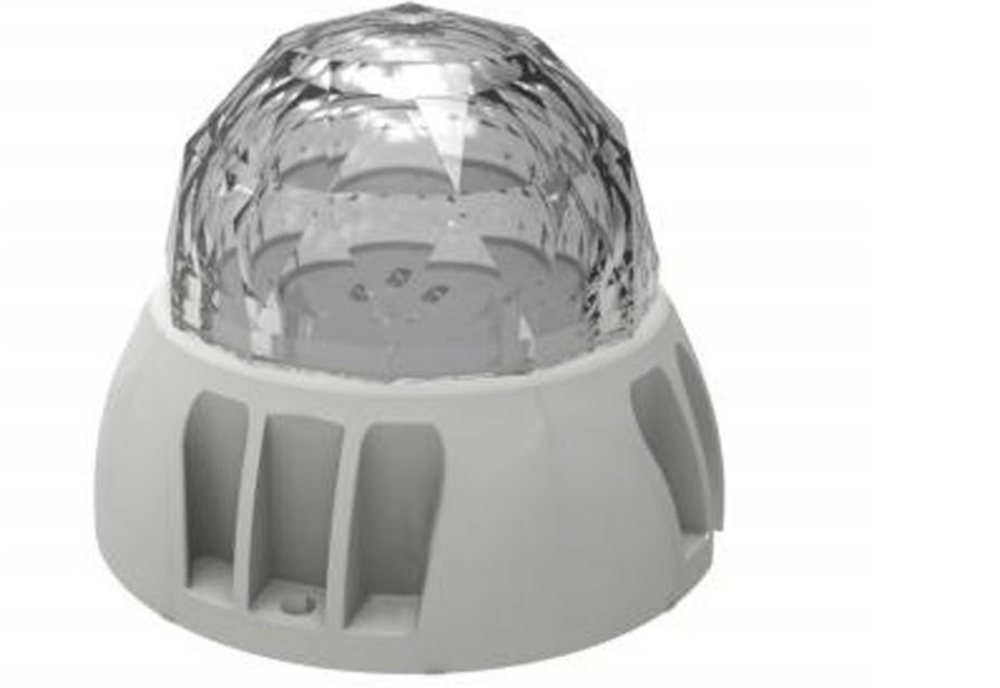

PL-PIX 100 is a direct-view pixel luminaire for creative urban concepts — media façades, low-density video displays and environmental graphics. The pixels can be arranged in any formation, enabling flexible, close integration with architecture.
This high-output 100 mm pixel is individually addressable over DMX in RGBW or static CCT at 3 W per pixel from 24 V DC, delivering 122 lm per pixel. The die-cast aluminium housing (grey RAL 9006) with crystal dome is IP65 and ESD-protected for outdoor use, and ships with 0.3 m cable in and out for fast daisy-chaining.
Features
- Direct-view, individually addressable RGBW / CCT pixel over DMX.
- High output — 122 lm per pixel at 3 W.
- Die-cast aluminium housing, powder-coat grey RAL 9006.
- Crystal dome; outdoor-rated with ESD protection.
- IP65; includes 0.3 m cable in and cable out.
- Arrange in any formation for media façades and graphics.
Specifications
| Series | Pixel Series — high-output pixel luminaire |
|---|---|
| Product code | PL-PIX-100-* |
| Dimensions | Ø 100 mm × 75 mm (L1 100 · L2 75) |
| Colour modes | RGBW · Static CCT |
| RGBW options | RGBW 3000 K · 4000 K · 6500 K |
| CCT options | 2700 K · 3000 K · 3500 K · 4000 K · 5000 K · 6000 K |
| LED type | SMD 5050 |
| LEDs per pixel | 3 |
| Power per pixel | 3 W |
| Operating voltage | 24 V DC |
| Luminous flux | 122 lm/pixel (RGBW 3000 K · CRI 80) |
| Control protocol | DMX (per-pixel addressable) |
| Beam angle | 120° |
| Dome / lens | Crystal dome |
| Housing | Die-cast aluminium · powder-coat grey (RAL 9006) |
| IP rating | IP65 |
| IK rating | IK08 |
| Operating temperature | –30 °C to +60 °C |
| LED lifetime | 50,000 hours |
| Cabling | 0.3 m cable in and cable out included |
| Connection | Daisy-chain · ESD protection |
| Warranty | 5 years, limited · CE compliant |
