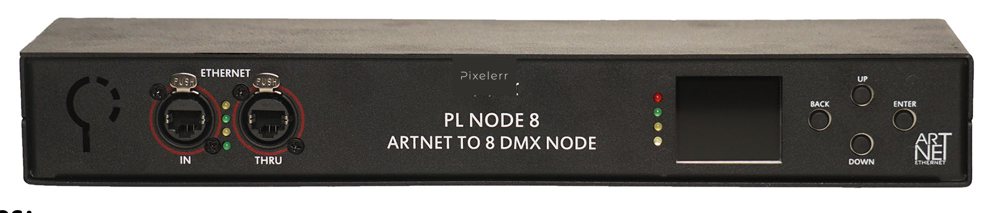

PL-NODE 8 is a high-speed Art-Net and sACN node offering 8 configurable DMX ports with 3-pin XLR connectors. The web-based interface allows easy configuration and monitoring from any browser, without additional software. RDM compatibility enables seamless management of RDM-enabled fixtures.
With Gigabit Ethernet support, PL-NODE 8 ensures fast data transmission and low latency — ideal for stage productions, architectural lighting and large-scale events.
Designed in Europe and assembled in India — high-quality engineering with precision manufacturing for reliable performance.
Features
- Eight DMX512 ports on 3-pin XLR connectors — reliable connections on all output ports.
- 100 % electrical isolation between all inputs and outputs — prevents cross-port issues.
- High-speed Gigabit Ethernet powered by a Marvell switch — no linking delay, IEEE 802.3-2005 compliant for long cable runs.
- RDM-over-Art-Net compatible — efficient remote device management.
- Web-based configuration and monitoring from any browser — no additional software.
- Versatile mounting: surface, rack, floor or ceiling with included multi-directional brackets.
Specifications
| Series | Art-Net / sACN Node |
|---|---|
| Product code | PL-NODE 8 |
| DMX ports | 8 × DMX512 — configurable |
| DMX connectors | 3-pin XLR on all output ports |
| Electrical isolation | 100 % — complete isolation between all inputs and outputs |
| Protocols | Art-Net · sACN · DMX |
| RDM | RDM-over-Art-Net compatible — remote device management |
| Data input | RJ45 Ethernet sockets — IN / THRU |
| Network | Gigabit Ethernet — Marvell switch, no linking delay, IEEE 802.3-2005 |
| Configuration | Web interface — any browser, no additional software |
| Display | Front-panel LCD with navigation buttons (Back, Up, Down, Enter) |
| Input voltage | 230 V AC via pre-connected 3-core 0.75 mm² cable |
| Power consumption | 11 W max |
| Mounting | Surface, rack, floor or ceiling — multi-directional brackets included |
| Dimensions | L 343 mm × H 123 mm × D 46 mm |
| Weight | 1.5 kg (3.3 lb) |
| Housing | MS / Aluminium |
| Connector / cable | 3-core 0.75 mm² cable |
| Operating temperature | –10 °C to +50 °C |
| Storage temperature | –20 °C to +70 °C |
| Environment / certification | IP20, interior application · CE |
| Origin / warranty | Designed in Europe, assembled in India · 5 years |
