PL-NODE 4 is a high-speed Art-Net and sACN node offering 4 configurable DMX ports with 3-pin XLR connectors. The web-based interface allows easy configuration and monitoring from any browser, without additional software. RDM compatibility enables seamless management of RDM-enabled fixtures.
With 100M Ethernet support, PL-NODE 4 ensures fast data transmission and low latency — ideal for stage productions, architectural lighting and large-scale events.
A reliable and flexible solution for professionals managing complex lighting systems and DMX-over-IP infrastructure.
Features
- Four DMX512 ports — bi-directional, input/output configurable, on 3-pin XLR connectors.
- Supports Art-Net & sACN protocols; RDM compatible for fixture management.
- Built-in 2-port 100M Ethernet switch for daisy-chaining nodes.

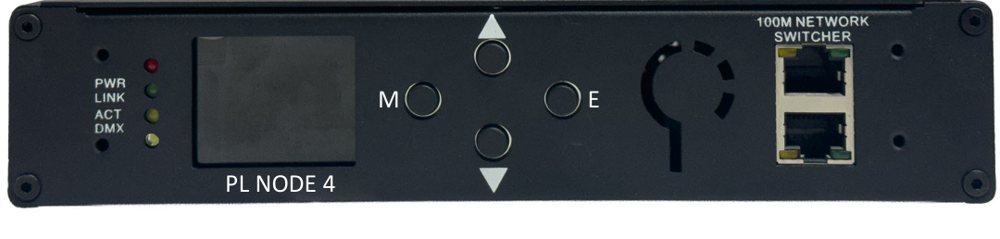

- Front panel LCD with 4-button navigation (Menu, Enter, Up, Down) and status LEDs: Power, Link, Activity, DMX.
- Configuration via on-device menu or web interface from any browser — no additional software.
- Rugged metal housing — rack or DIN mountable with additional accessories.
Specifications
| Series | Art-Net / sACN Node |
|---|---|
| Product code | PL-NODE 4 |
| DMX ports | 4 × DMX512 — bi-directional, input/output configurable |
| DMX connectors | 3-pin XLR |
| Protocols | Art-Net · sACN · DMX · SPI (in development) |
| RDM | Yes — management of RDM-enabled fixtures |
| Data input | 2 × RJ45 — 10/100 Mbps, integrated 2-port Ethernet switch |
| Network | 100M Ethernet — fast data transmission, low latency |
| Configuration | On-device menu & web interface — any browser, no additional software |
| Display | LCD with 4-button menu navigation (Menu, Enter, Up, Down) |
| Status LEDs | Power · Link · Activity · DMX |
| Input voltage | 9 – 24 V DC / 1 A (typical) |
| Mounting | Rack or DIN mountable with additional accessories |
| Dimensions | L 210 mm × H 155 mm × D 45 mm |
| Weight | 1.0 kg (2.2 lb) |
| Housing | Metal enclosure, black powder coat finish |
| Operating temperature | –10 °C to +50 °C |
| Storage temperature | –20 °C to +70 °C |
| Environment | IP20 — interior application |
| Certification | CE |
| Applications | Stage productions · architectural lighting · large-scale events |
| Warranty | 5 years |
