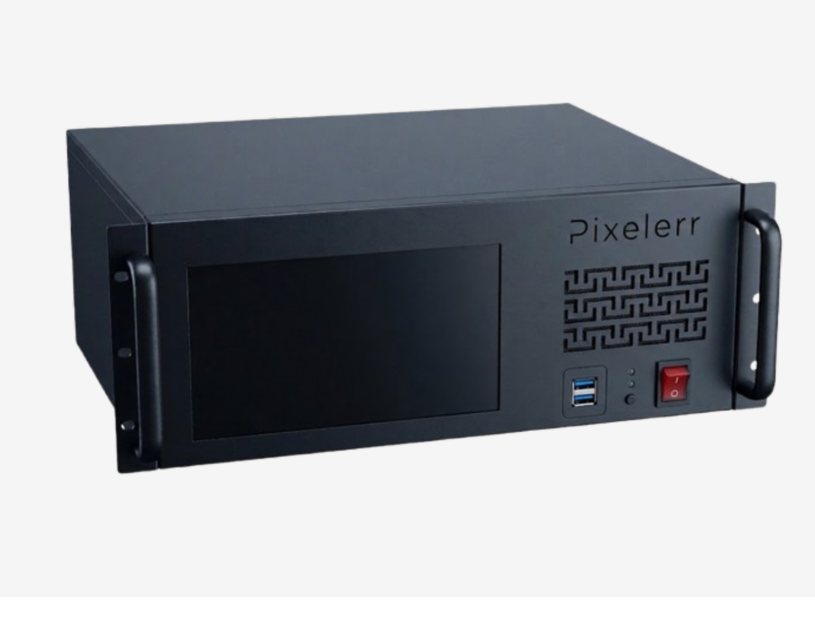

PL-NEO X / NEO PRO X is designed for demanding projects requiring a large number of DMX, Art-Net and sACN channels. The server offers licence options ranging from 16 to 512 universes — scalable without hardware changes.
Features include 24-hour Audio and Video Timeline synchronisation, MIDI Time Code, PC Clock triggers, and Live Timeline Record with pixel mapping for LED matrices and video screens.
Ships as a high-performance server with pre-installed software. Shows and light scenes can be controlled via the internal Live Page or from mobile devices (Android / iOS).
Features
- Scalable universe licensing — 16 to 512 universes; upgrade the licence at any time without hardware changes.
- 24-hour Audio and Video timeline synchronisation; lock the timeline to incoming MIDI Time Code.
- Live Timeline Record — capture live DMX / Art-Net / sACN output in real time and save it as a timeline show.
- Integrated pixel mapping for LED matrices, video screens and architectural surfaces.
- Multi-protocol: outputs DMX-512, Art-Net and sACN simultaneously; accepts Art-Net and sACN as input.
- Open UDP / Ethernet SDK for BMS, AMX, Crestron and third-party integration; Android / iOS mobile control.
Specifications
| Series | DMX / Art-Net Control Server |
|---|---|
| Models | PL-NEO X · PL-NEO PRO X |
| Licence options | NEO X: 16, 32, 64 universes · NEO PRO X: 128, 255, 512 universes |
| Protocols | DMX-512 · Art-Net · sACN (E1.31) |
| Ethernet | Yes — Art-Net & sACN input / output |
| Software (pre-installed) | Pixelerr (NEO X) · Pixelerr PRO (NEO PRO X) |
| Audio & video timeline | Yes — 24-hour synchronisation |
| Live Timeline Record | Yes — real-time recording of DMX / Art-Net output |
| Pixel mapping | Yes — LED matrices and video screens |
| PC Clock & Calendar DMX modes | Yes — year, month, day, time as DMX triggers |
| MIDI Time Code | Yes |
| MIDI / RS-232 / DMX IN | Yes — keyboard and hyperlink control |
| Art-Net / sACN / DMX input | Yes — control and record |
| UDP / Ethernet triggers | Yes — SDK available |
| Mobile application | Android · iOS |
| DVI resolution | 1024 × 768 (NEO X) · 1280 × 720 / 1280 × 1024 (NEO PRO X) |
| Live Page control | Yes — internal touchscreen-style show control |
| Power | 100 – 240 V AC, 50/60 Hz |
| Dimensions | W 430 mm × H 177 mm × D 330 mm |
| Weight / housing | 9 kg · diecast / extruded aluminium with brushed anodised finish |
| Environment | –40 °C to +85 °C · 0–80 % RH, non-condensing · IP20 |
| Compliance / warranty | CE, RoHS · 5 years international warranty |
