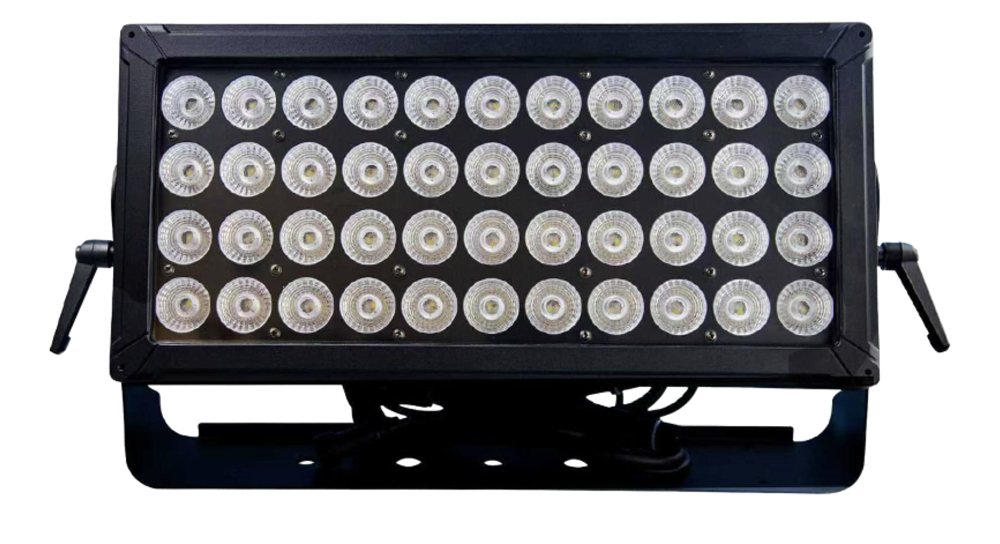

PL-FLD 300 is a high-power outdoor LED flood projector with a special rotation design that enables infinite positioning for a wide range of light effects. Its minimalistic die-cast aluminium housing makes it a natural fit for large architectural facades, monuments and landscape lighting.
Built on 44 high-power LEDs with a broad choice of optics, it delivers up to 22,500 lm with precise control over brightness, colour and beam angle — available in static CCT and RGBW versions, in 150 W, 200 W and 300 W ratings, powered directly from 220–240 V AC.
Features
- Rotation design with infinite positioning — aim, lock and re-aim for any light effect.
- 44 high-power LEDs — 11,250 lm (150 W) up to 22,500 lm (300 W).
- Seven beam angle options from 10° to 90°, including a 10°×45° elliptical optic.
- Static CCT and RGBW versions, controlled via DMX.
- IP66 die-cast aluminium housing with 4 mm tempered glass front.
- Omega-bracket mounting; optional honeycomb louvre for glare control.
Specifications
| Series | LED Flood Series — RGBW / CCT |
|---|---|
| Product code | PL-FLD-300-*-*-* |
| LED type | High-power 4-in-1 RGBW + warm white |
| LED quantity | 44 pcs |
| Operating voltage | 220–240 V AC |
| Wattage | 150 W · 200 W · 300 W |
| Luminous flux | 11,250 lm (150 W) · 15,000 lm (200 W) · 22,500 lm (300 W) |
| CRI | RA80+ (based on 3000 K) |
| CCT options | Static: 2700 K · 3000 K · 3500 K · 4000 K · 5700 K |
| RGBW options | RGBW — 3000 K · RGBW — 4000 K |
| Beam angle | 10° · 15° · 25° · 45° · 60° · 90° · 10°×45° |
| Control protocol | DMX |
| LED lifetime | 80% lumen maintenance after 50,000 hours |
| Dimensions | L 450 mm × W 270 mm |
| Weight | To be confirmed |
| Housing | Die-cast aluminium · powder coating |
| Front screen | 4 mm tempered glass |
| IP rating | IP66 |
| Operating temperature | –30 °C to +70 °C |
| Installation | With omega brackets |
| Accessories | Honeycomb louvre (optional) · CE compliant |
| Warranty | 5 years, limited |
