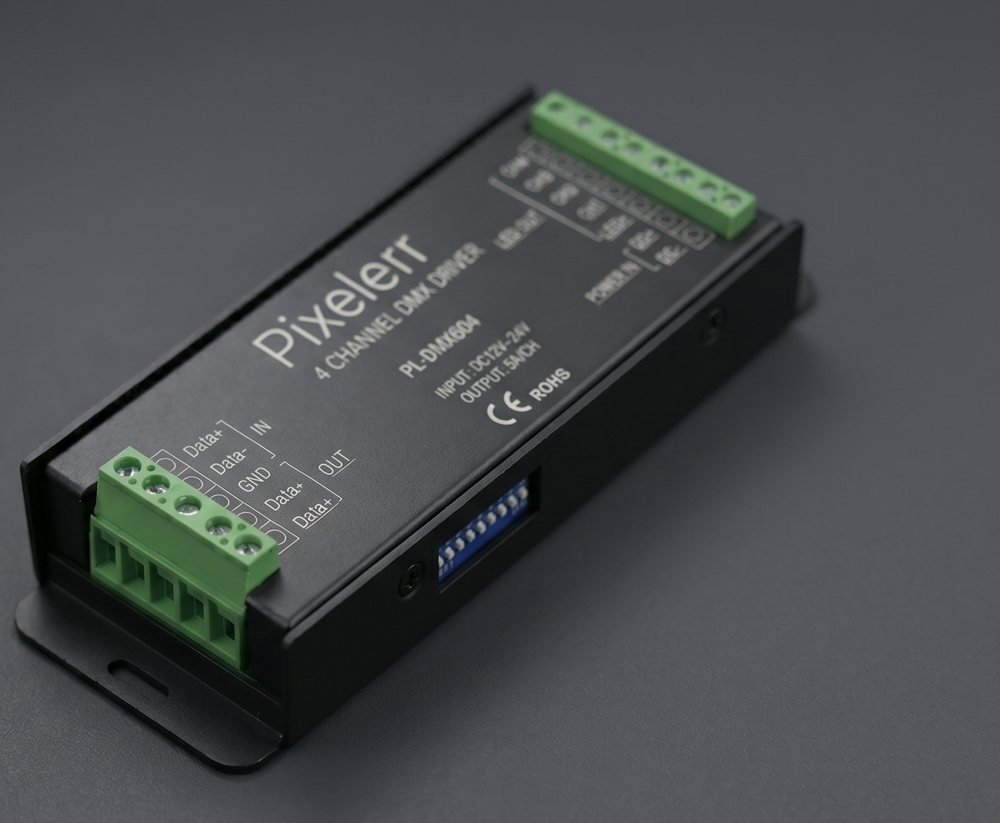

PL-DMX604 is a 4 channel DMX driver that operates on 12–24 V DC input and outputs up to 5 A per channel. The provided connector block terminals offer easy installation for input and output cable management.
DMX addressing from 001 to 512 is set directly on the onboard DIP switch — no software required. Channel bonding allows two outputs to be combined for up to 10 A on a single load.
Comprehensive protection: short circuit, reverse polarity, over temperature, over voltage and over current.
Features
- 4 DMX channels at 0.1–5 A each — up to 120 W per channel at 24 V.
- Channel bonding capable: combine outputs for up to 10 A (common anode + bonding compatible).
- DMX 512A dimming control with 8-bit or 10-bit resolution.
- Addressing 001–512 via onboard DIP switch — fast, software-free commissioning.
- Screw terminal blocks: 3-pin DMX in/out, 8-pin LED output for clean cable management.
- Full electrical protection — short circuit, reverse polarity, over temperature, over voltage, over current.
Specifications
| Series | DMX Driver — Constant Voltage |
|---|---|
| Product code | PL-DMX604 |
| Channels | 4 × DMX |
| Protocol | DMX 512 |
| Input voltage | 12 – 24 V DC |
| Input connection | DMX — 3-pin, 3.5 mm pitch screw terminal |
| Output current | 0.1 – 5 A per channel |
| Output power per channel | 0 – 120 W (24 V) · 0 – 60 W (12 V) |
| Channel bonding | Common anode + bonding compatible — up to 10 A |
| LED connection | 8-pin terminal connector |
| Resolution | 8-bit, 10-bit |
| Dimming control | DMX 512A |
| Control connection | DMX — 3-pin, 3.5 mm pitch screw terminal |
| DMX range | 001 – 512 via DIP switch |
| Protection | Short circuit · reverse polarity · over temperature · over voltage · over current |
| Mounting | Compact PCB or chassis mounted |
| Dimensions | H 25 mm × W 126 mm × D 45 mm |
| Weight | 50 g (0.11 lb) |
| Housing material | MS / Aluminium |
| Operating temperature | –10 °C to +50 °C |
| Storage temperature | –20 °C to +70 °C |
| Compliance / warranty | CE, RoHS · 5 years warranty |
